Refleks TT 2000 S IQ Vision

Smart Bulk Tube Sorter

Refleks TT 2000 S IQ Vision

Smart Bulk Tube Sorter

E-Catalog dowload

TT 2000 S IQ VISION Features:

Bulk Loading and Sorting for Efficient Sample Management: TT 2000 S IQ VISION offers cost-effective optimization for sample reception and other work areas through bulk loading and sorting. It is user-friendly, low-maintenance, and provides customized solutions for individual workflows, reducing turnaround time.

Bulk Loading:

  • Easy and continuous bulk loading with a hopper capacity of up to 800 tubes.
  • Compatible with standard tubes of 8-22 mm diameter & 70-120 mm length.
  • Possible connection to TT Smartline for reception.

Sample Registration:

  • Barcode scanner for quick and dependable sample tube identification.

Tube Identification:

  • Integrated hi-res camera and built-in software identify tube diameter, length, and cap color, preventing mismatches and handling errors.

Sorting Rules:

  • Sorting based on LIS-transmitted or user-defined rules (barcode information, tube parameters, blood test, cap color).
  • Solves “Clone Tube” problem.
  • Software responds to STAT samples.
  • Bi-directional connection to LIS for data exchange.

Continuous Sorting to Bins:

  • 12 target bins + 1 error bin by default, configurable from 6 to 18 bins.
  • Continuous sorting with an option to connect to TT Smartline conveyor system.
  • “Refleks Mode” ensures uninterrupted sorting even when removing a target bin.

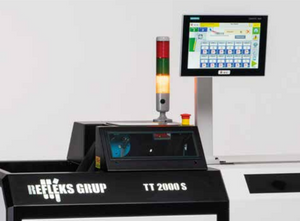

User Interface:

  • Color touchscreen with a user-friendly multilingual interface (default: English & Turkish, other languages optional).
  • Operating system: Industrial PC Windows 10 Pro.

Reporting Feature:

  • Independent reporting feature provides various reports, enhancing data analysis.

Error Handling:

  • Unidentifiable and mismatched sample tubes directed to the error bin.
  • Capable of sorting recapped sample tubes for archiving purposes.

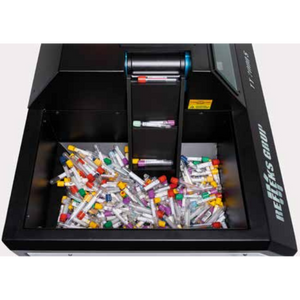

  • Easy and continuous sample bulk loading up to 800 tubes.
  • Compatible with all standard tubes of 8-22 mm diameter & 70120 mm length. Can introduce new tube types effortlessly through the interface.
  • The elevator can feed all tube positions continuously
  • Scans all 1D & 2D barcodes.
  • Tube acceptance details are stored in the “Log” file.

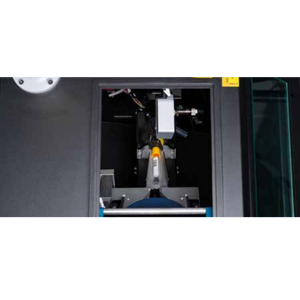

  • The integrated hi-res camera takes photos of processed tubes. The specialist physician can check the images before they are allowed into the analysers. 1Q Vision

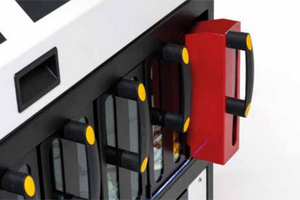

  • 12 target bins plus 1 error bin. The number of bins can be changed from 6 to 15.
  • It has a light-warning system for bin activities.
  • The user can set the “bin full” level on the screen.
  • Uninterrupted sorting continues by assigning a matc hing bin number even if the user draws out the bin, thanks to the "Refleks Mode.”
  • Uninterrupted sorting continues by assigning a matc hing bin number even if the user draws out the bin, thanks to the "Refleks Mode.”
  • Start/Stop by drawing bin" mode may be selected from the screen menu if needed.
  • It has a reporting feature. Independent of LIS, various reports are available for sorted tubes, such as:
  • Sample acceptance times.
  • Targeted bins.
  • Total number of samples by barcode.
  • Total number of samples by cap colour, tubedia eter, tube length or combinations. (1Q Vision)
  • Access to reports is governed at the level of the user's authorisation.
  • Reports are retrieved in xis format via USB, printed via external printer, or shown on screen.
  • Historical statistics are stored in the internal hard disk as much time as needed.

TECHNICAL SPECIFICATIONS

  • Dimensions :
  • 1940 x 1200 x 720 mm (w x h x d)
  • Tube Sizes:
  • 190 cm x 77 cm x 155 cm.
  • Weight:
  • 240kg (appr)
  • Power:
  • 220 VAC / 50-60Hz
  • Origin:
  • Turkey
  • Sample Throughput:
  • 2000 samples/hr (TT 2000 S)
  • 1600 samples/hr (TT 2000S IQ Vision)
  • User Interface:
  • Color Touch Screen | Turkish, English (other languages - optional)
  • LIS Interface:
  • RJ35
  • Operating System:
  • Industrial Windows 10 Pro (IPC)
  • Data Transmission:
  • Internet / TCP/IP protocol
  • Compatible Tube Sizes:
  • Length: 70-120 mm Diameter: 8-22 mm
  • Sorter Mode Off-line:
  • Classification according to off-line Cap Color
  • Sorter Mode On-line:
  • Lis-transmitted rules based on barcodes According to LIS or user-defined rules (1Q Vision only)
  • Tube Loading Capacity:
  • 800+ tubes (varies per tube size)
  • Bin Capacity:
  • 250 tubes (varies per tube size)
  • Barcode Type:
  • 10 Barkod: EAN, UPC, Code 128, Code 39, Code 39 (Extended), Interleaved 2-0f-5, Codebar,2D Barcode (optional)
  • Number of Bins:
  • 2 Target bins - Error Bins
  • Refleks Mode:
  • Continuous operation with the matching bin assignment feature. When the bin is drawn out, the device continues sorting.
  • Reporting Feature:
  • Independent of LIS, various reports are available, such as:
  • Sample acceptance times
  • Targeted bins
  • Total number of samples by barcode
  • Total number of samples by cap colour, tube diameter, tube length or combinations. (IQ Vision)
  • Users require authorisation for access to reports. Reports are retrieved in xis format via USB, printed via external printer, or shown on screen. Historical statistics are stored in the internal hard disk
  • Other specifications:
  • Length: 70-120 mm Diameter: 8-22 mm
  • Drawer fullfempty backlighting
  • Tube lifting by a sliding elevator system
  • Audio & Visual warning system
